| Items | Transport semi trailer WDL9403Z | Transport semi trailer WDL9404ZTP |
| Loading Capacity | 30-40 tons(20CBM- 35CBM) | 60-80 tons ( 30CBM- 45CBM) |
| Axle | 3 pieces, 13T FUWA/ BPW axle | 4 /5/6 pieces, 13T FUWA/BPW axle |
| Tyre | 12 pieces, 12R22.5 or 315/ 80R22.5 | 16/20/24 pieces, 12R22.5 or 315/80R22.5 |
| Dimensions (LxWxH) | 8600 to 12200mm x 2500 x 3150-3850mm | |
| Dump Box (LxWxH) | 7500 to 11500mm x 2350 x 1300-1850mm | |
| Tare weight | 8 tons to 18 tons | |
| Axle spacing | 1310mm | |
| Rims | 9.0-22.5 | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Emergency braking system,air damping,Dual line pneumatic brake system ;WABCO RE 6 relay valve; T30/ 30+T30 Spring brake chamber (FUWA brand); Two pieces of 45L air tanks | |
| Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 14mm ; Material is Q345B Steel . (Adjust the configuration size according to the load;) |
|
| Dump Box | Side wall thickness 8mm, bottom thickness 10mm , | |
| Hydraulic Cylinder | 196-5-6300 / 214-5-9300 ( Optional depending on the length and load of the trailer) | |
| Kingpin | 2′ or 3.5′ interchangeable | |
| Landing Gear | 28 Tons , Two speed manual operation | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
| Tool Box | One tool box with a set of standard trailer tools | |

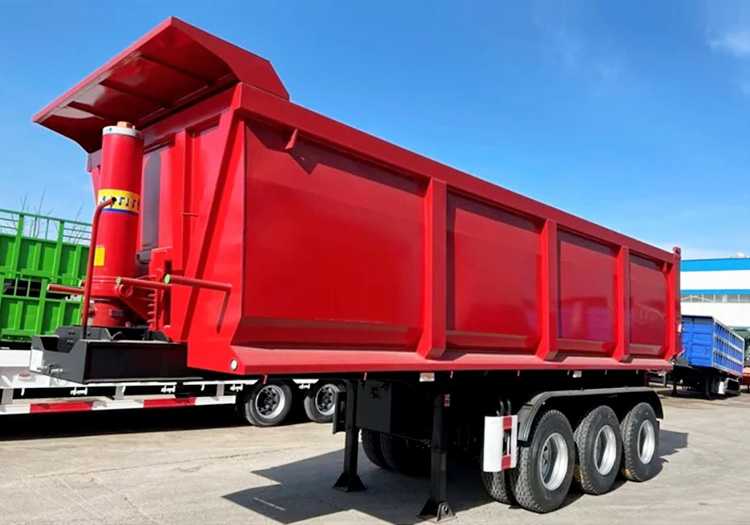

Hydraulic Dump Trailer Truck for Sale

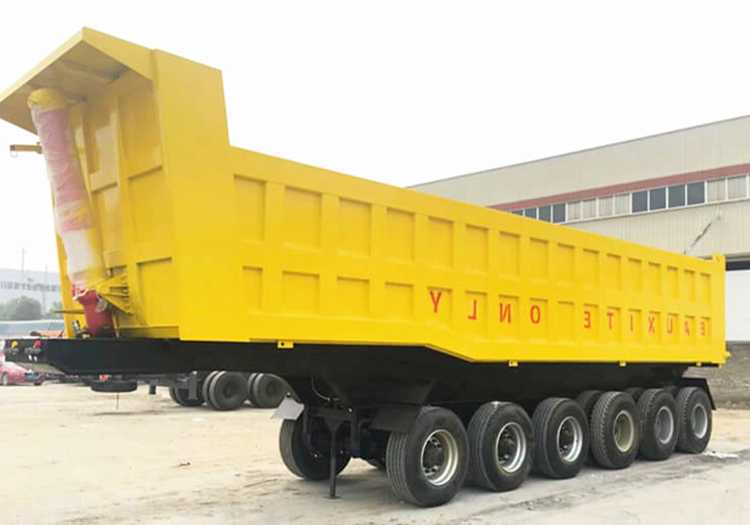

6 Axle Dump Semi Trailer Truck
We have following products:
1.Container semi trailer : flat bed semi trailer and skeleton semi trailer ,used for transport 20ft,40ft,45ft,53ft container or steel etc. Size:7160/12350/14200/14850/16500x2500x1490mm;
2. Side wall semi trailer have container lock :used for transport bulk cargo , and container.
3.Low bed semi trailer: Used for transport big equipment, such as excavator etc.
4.Dump semi trailer: Side tipping or rear tipping semi trailer ,used in mining area for transport mineral,coal,etc. and also can used on the construction site for transport sands and transport for grain;
5.Fuel tanker semi trailer: Tanker capacity:30-60m3;
6.Concrete conveying pump/boom pump:Used for conveying concrete from ground to high building in the construction site;
7.Concrete mixer truck: the capacity is from 8M to 16M
8. Bulk cement semi trailer : used for transport bulk cement and powder cargo.
9. Multipurpose Fence semi trailer and van semi trailer .
1. Why you choose us?
We have 20 years produce experience, Our factory is good at controlling frame quality which is base of trailers’ lifetime.
. Choose us you choose professional transportation scheme supplier
2. How to trust us?
The good faith management is our philosophy, and welcome visits our company at any time. We are also willing cooperate with your certifying authority such as INTERTEK, SGS etc. for testing cargo.
3. What others we can do?
According to your order, we provide suitable trailer program, like lightweight design let transport more, rational design of the strengthening rib let trailer strong enough etc.
We also provide rational packing and shipping program, let shipment save money and security.
We can also make special design for you according to your special requirements.
