| Items | Side wall semi trailer WDL9400 | Side wall semi trailer WDL9401 |
| Loading Capacity | 30-40 tons | 45-50 tons |
| Axle | 2 pieces, 13T axle | 3 pieces, 13T axle |
| Tyre | 8 pieces, 295/60R22.5 | 12 pieces, 295/ 60R22.5 |
| Dimensions (LxWxH) | 9500mm x 2500 x 1250mm | 12500mm x 2500 x 1250mm |
| Tare weight | 8 tons to 10 tons | |
| Axle spacing | 1310mm | |
| Rims | 9.0-22.5 | |
| Suspension System | Leaf spring suspension / air suspension | |
| Brake System | Emergency braking system,air damping,Dual line pneumatic brake system ; WABCO RE 6 relay valve; T30/ 30+T30 Spring brake chamber (FUWA brand); Two pieces of 45L air tanks | |
| Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 14mm ; Material is Q345B Steel . |
|
| Side Wall | 800mm height; 600mm,1000mm optional | |
| Container Twist Locks | 12 nos, THT | |
| Kingpin | 2′ or 3.5′ interchangeable | |
| Landing Gear | 28 Tons , Two speed manual operation | |
| Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
| Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
| Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
| Tool Box | One tool box with a set of standard trailer tools | |
| Spare Tyre Carrier | One piece or two pieces | |

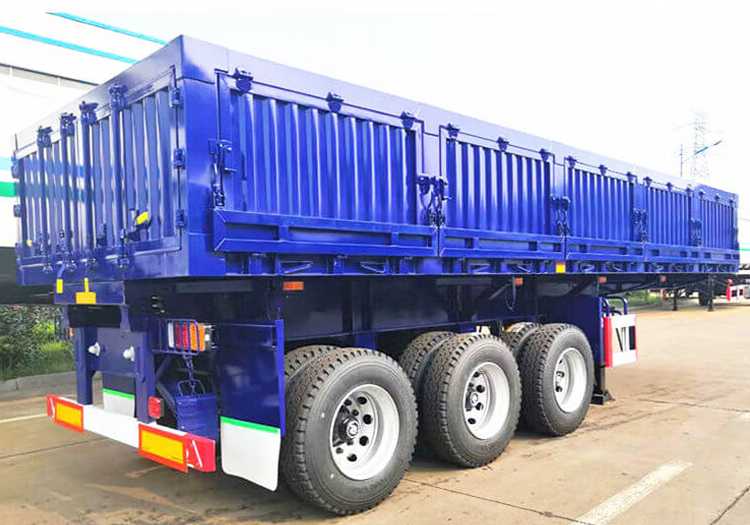

50T Side Wall Dump semi truck and Trailer

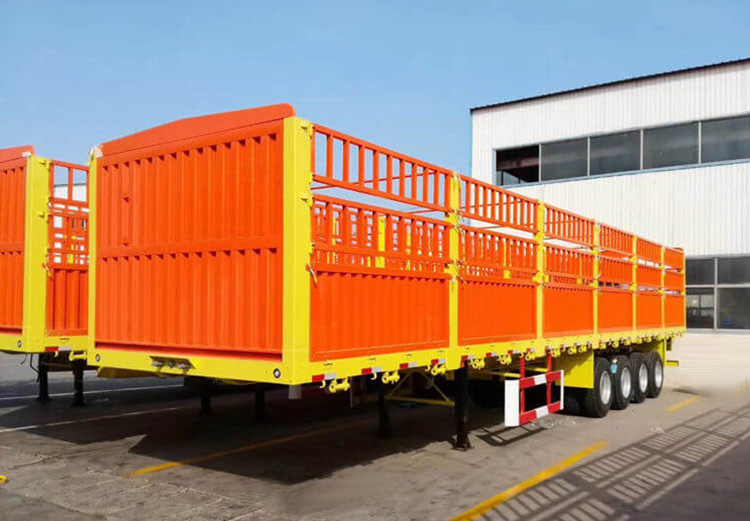

Fence Semi Trailer With High Side Wall
