Description

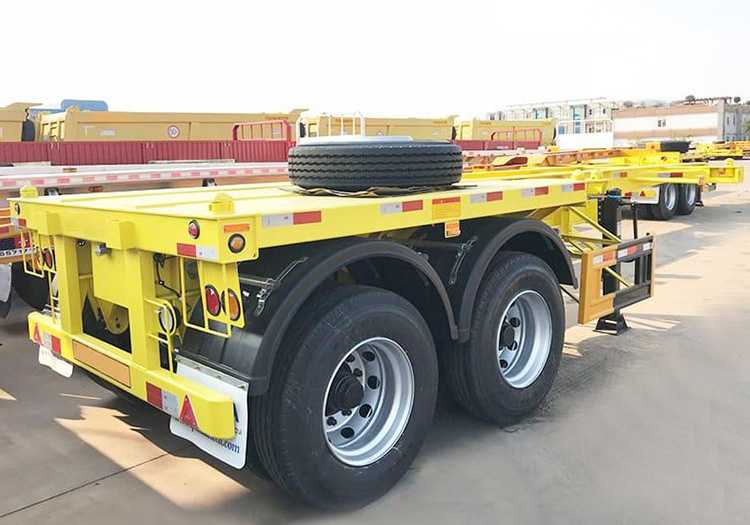

20 FT Skeletal Semi Trailer , also named skeleton semi trailer, container chassis trailer, etc. Generally used for transport ISO container in port, ship yard, routes, bridges, tunnels, transfer station, supporting multimodal transport logistics system. 20ft long fit 8 sets container locks suitable for 10 dry container, tank container, and reefer container, etc.
20 FT Skeletal Semi Trailer Specification
| Dimension | 7500*2500*1550mm |
| Height of skeletal trailer | 1550mm |
| Width | 2500mm |
| Skeletal trailer weight | 5600Kg |
| Main Beam | Section 500mm height Q345/T700 material |
| Twist Lock | 8 set ISO Standard |
| Suspension | Mechanical / Air / Bogie |
| Axle | 2 axles BPW/FUWA/PDME etc |
| Rim | 8/12 pieces 9.0-22.5 Steel/Aluminum |
| Tire | 8/12 pieces 12R22.5 Bridgestone/Triangle/Linglong etc |
| Brake Valve | WABCO |
| Brake Chamber | 4/6sets T30/30 |
| Air Tank | 28L |
| Brake Pipe | Nylon Wire Pipe |
| Landing Gear | 28T Lifting JOST/YAHUA |
| Kingpin | JOST Bolting Type |
| Lights | 12v/24v LED Waterproof |
| Color | Customized |
20 FT Skeletal Semi Trailer Types | Flatbed semi trailer for sale
20 FT Skeletal Semi Trailer Feature:
Main beam:
High strength Q345 or T700 steel material welded by submerged arc
Twist Lock:
ISO standard lock suitable worldwide container, additional protection switch avoid mistake operate
Axle:
BPW, FUWA,PD brands optional support longer working without maintenance
Tire:
Famous brand tire optional, size customized
Rim:
Quality steel or alu rim customized
Suspension:
Heavy duty mechanical suspension with equalizers quality spring
Brake system:
Dual line air brake system, T30/30 chamber and WABCO relay emergency valve, ABS and EBS system optional
Brake Pipe:
Nylon wire pipe more safety for high pressure braking
