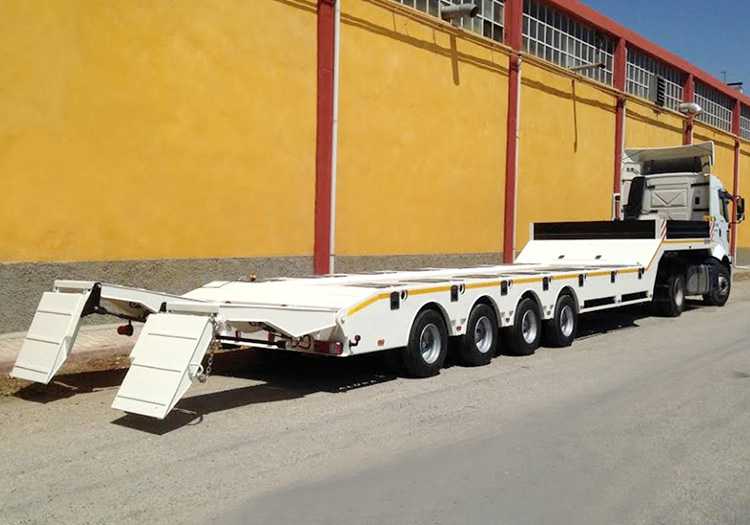

4 Axle Lowbed Semi Trailer Double Tires

Axle Lowbed Semi Trailer Double Tires depending on their design may have 2, 3 or more axles and are mainly used to carry heavy-duty road vehicles as well as other heavy industrial equipment with unusual dimensions.

Description

4 Axle Lowbed Semi Trailer Double Tires :

This application is a type of flatbed with a higher length, width and capacity. 4 Axle Lowbed Semi Trailer Double Tires depending on their design may have 2, 3 or more axles and are mainly used to carry heavy-duty road vehicles as well as other heavy industrial equipment with unusual dimensions. Driving with a lowbed requires the observance of some specific traffic rules i.e. escort by patrol cars and moreover comply with certain regulations such as low speed, traffic hours and using extra signs to prevent driving accidents.

Center of Gravity:

Unconventional loads have high elevation, so their traffic on urban and road surfaces is difficult due to limits in height of bridges and additionally heavy loads put lowbed stability in danger. Consequently designers tried to solve both problems in one shut by decreasing chassis height between the kingpin and rear axles. Depending on the nature of shipment, the rear body can be extended in order to distribute the load on the chassis and axles as evenly as possible. The lowbed platform provided at the end of chassis, has a major role in loading and offloading of such cargoes.

Accessories:

  • Hand brake system
  • Side load hook
  • A Spare Tire Holder Wheel Mount Rack Bracket Carrier
  • Rear warning lamp light
  • A toolbox
  • 2 wind turbines 80 Lit
  • 4 metal chocks
  • 4 pcs mudguards

Options:

  • Holding standard and certificate of welding inspection and dimensional control
  • Customized rims and spare tires

4 Axle Lowbed Semi Trailer Double Tires | Trailers for sale in south africa

4 Axle Lowbed Semi Trailer Double Tires | Trailers for sale in south africa

4 Axle Lowbed Semi Trailer Double Tires | Trailers for sale in south africa

4 Axle Lowbed Semi Trailer Double Tires | Trailers for sale in south africa

4 Axle Lowbed Semi Trailer Double Tires Technical Specifications:

Dimensions:

  • Length: 13190 mm
  • Width: 2550 mm
  • Extendible to 600mm
  • Gooseneck length: 3950 mm
  • Chassis height from ground: 890 mm
  • Loading deck length: 9240 mm
  • extendible to 6000mm
Chassis Construction: Chassis and other metal pieces are made of high-strength steel (S500MC) with special fixture automatic Co2 argon welding machine.

*Special steel sheet iron and all steel pressed parts *floor made of ribbed steel plate 6 mm welded on ramps and main chassis

Braking System: EBS System (Electrical Anti Block Brake System) with RSP (Roll Stability Program) Disk and Knorr / Wabco (Germany) Two double acting diaphragm brake chamber per axle.
Painting: Shot blasted, according to SA2/5 and washed by special material, painted with a layer of epoxy primer and of polyurethane final coat
Electric System: 7 and 15 Pole quick release connector, Austrian Pair of 24 volts rear light, side light and alarming system from Aspock with LED Type, ADR standard anti-spark power switch.
Landing Legs: Front door, Static Capacity 50 Tons & Dynamic Capacity 24 Tons (SAF) Germany and rear door 2 pcs jack pins
King pin:2 and 3.5 Inch SAF king pin made in Germany.
Back ramp: 2 pcs hydraulic system, width 750 mm, capacity 60 tons, height 3108 mm
Tires: 16 pieces 12.00*20″ (with manufacturer guarantee)
Axle/ Suspension: 8 special spring axles (VBT)
Rim: 16 single-piece rims 8.5 * 20
Suspension and axles: 4*16 ton EU Standard axle

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
