Description

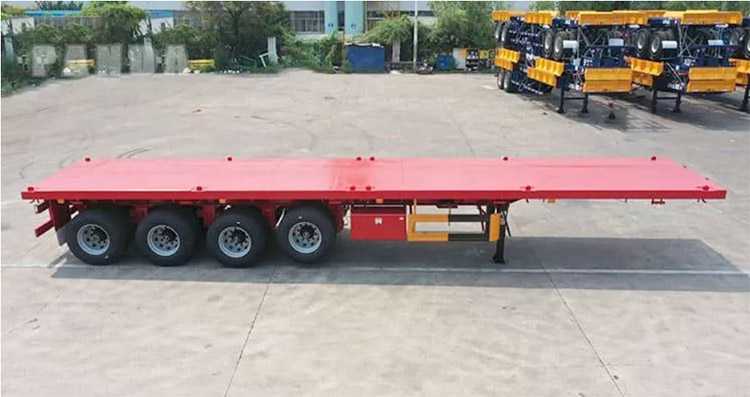

4 Axle Platform Semi Dump Trailers is a good tool for transporting construction materials and containers, it is a typical open deck equipment, ordinary platform container trailer is no side baffle, mainly used to transport machinery, containers, construction supplies, or equipment, such as some oversized super wide, irregular cargo, no baffle around the design, making it more convenient to unload cargo.

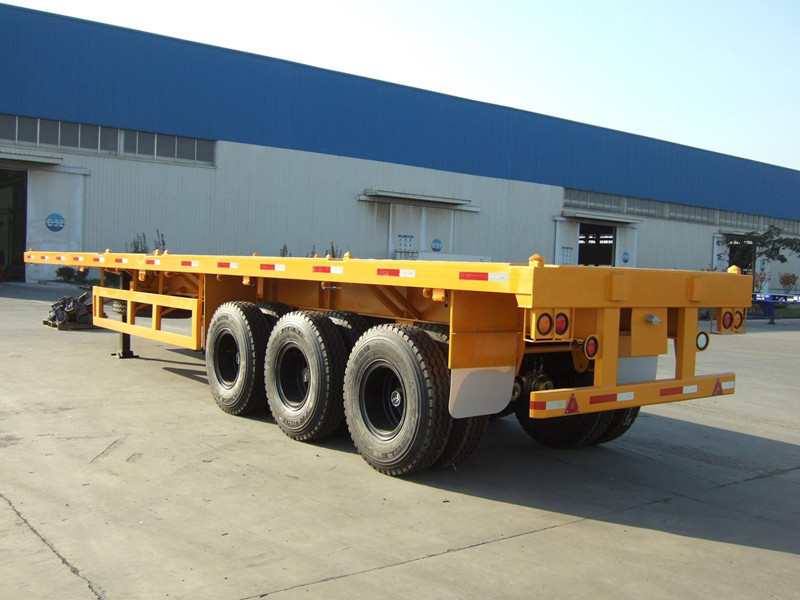

4 Axle Platform Semi Dump Trailers itself is open, so that the goods transported by flatbed trailer may be affected by some bad weather, for some goods can not be subject to rain, try not to use the flatbed cargo trailer to use. With the versatility of flatbed truck trailer, flatbed semi trailer is very popular, the most common flatbed container trailer is 3 axle 40ft, which is very ideal for all construction sites when transporting. (superlink flatbed trailer)
4 Axle Platform Semi Dump Trailers Features
- 1. The main beam is designed as I-beam design, which is stronger in bearing and more durable.
- 2. Use automatic hydraulic I-beam straightening machine with higher precision to work.
- 3. Stable and durable structure.
- 4. Cooperation with famous brand parts suppliers to extend the service life.
4 Axle Platform Semi Dump Trailers Specification
Axles | 4 axles, BPW/ SAF/ FUWA Brand |
Dimensions | 12500* 2500* 1500 mm |
Capacity | 70 ton |
Weight | 7-9.5 ton |
Twist lock | 8-12 sets |
Material | Main beams Q345B, upper flange:14mm, middle:8mm, down:16mm |
King Pin | 2 inch or 3.5 inch JOST Brand |
Suspension | Mechanical, airbag suspension |
Tire | 11.00R20, 12.00R20,12R22.5, 385/ 65R22.5 Triangle/ Hankook/ Bridgestone brand |
Application of 4 Axle Platform Semi Dump Trailers
The platform transport trailer is generally used to transport containers, bulk cargo, cement, rice, etc. It is mainly used for long-distance transportation. Typically, flat deck semi trailers can haul 30-60 tons.
If it is a large amount of transportation or different needs, we can customize it or flatbed shipping container trailer some deformed vehicles. We also use 40ft container chassis trailer to transport container.
