Description
|

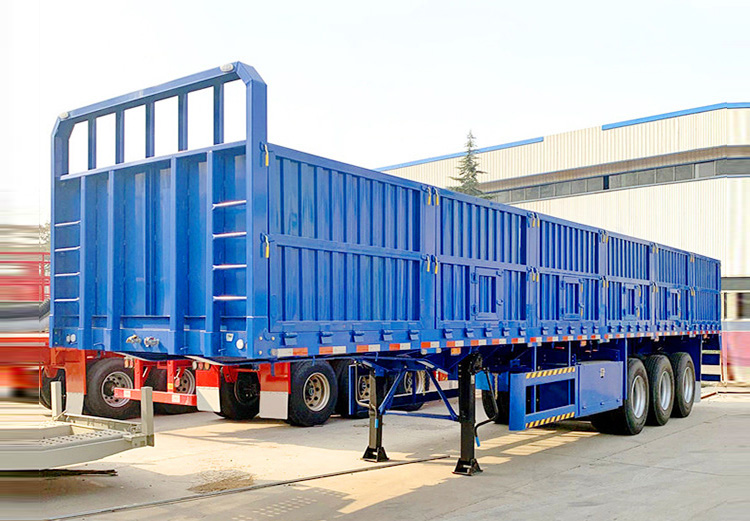

40FT Container Semi-trailer with Removable Side Wall |
||||
| Main Description | ||||
| Overall Dimension | 12500 mm * 2500 mm * 2700 mm | |||
| Tare Weight | 9000kg | Pay Load | 40 ton | |
| King Pin Setting | 1460 mm | Rear Overhang | 1930 mm | |
| Track | 1840 mm | Loading surface height | 1650 mm | |
| Wheel base | 7800 mm + 1310 mm + 1310 mm | |||
| Removable Side Wall Height | 600 mm. With 12 pieces of container locks | |||
| Box Body | Floor steel sheet 3mm, side wall steel sheet 2mm | |||
| Running Gear | ||||
| Suspension | Mechanical suspension with 10-pcs leaf spring | |||
| Tires | 315 / 80R 22.5, 13 units ( 12R 22.5, 12.00 R20 are optional ) | |||
| Axles | FUWA Brand, 3 axles, load capacity 13T per axle | |||
| Brakes | Dual lines pneumatic brake system; T30 / 30+ T30 air chamber; parking brake | |||
| Under Frame | ||||
| Main Beam | The height of the beam is 500 mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm | |||
| Cross Beam | Mild Alloy Q235B | |||
| King Pin | Size: 3.5 or 2.0 | |||
| Landing Gear | Single side operation | |||
| Electrical & Paint | ||||
| Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||
| Wiring | 24V, 6 lines | |||
| Air Connector | ISO standard air connector, 24V 7 pin plug socket | |||
| Paint | Sand blasting before painting, 2 coat of anti-corrosive primer, 2 coats of finish urethane paint, Color upon request | |||
| Others | ||||
| 1 Tool Box, 2 Spare Tire Racks | ||||
