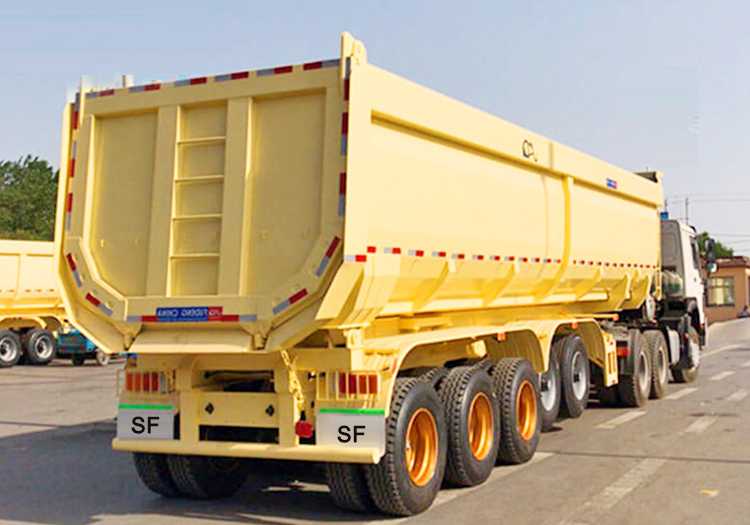

45 Cubic Meter Tipper Semi Trailer Truck Price
45 Cubic Meter Tipper Trailer Truck adopt high strength steel to make it durable when load the sand or small stones or rocks. 45 cubic meter tipper trailer laoding capapcity from 30T to 100T, full set of HYVA lifting cylinders. Sophisticated technology: use Netherlands Hayward cards (HYVA) hydraulic lifting cylinders, stable lifting performance, stringer with automatic submerged arc welding is made using precision assembly axle assembly machine, steel spring. The use of rollover and rear compartment turn tipper mode, which can effectively improve transport efficiency loaders transporting bulk goods scattered.
45 Cubic Meter Tipper Semi Trailer Truck Price | Truck and trailer
SF semi trailer Factory tipper trailer advantage:
1. Double-plate main beam for heavy duty tipper trailer, which have stronger carrying capacity, it is not easy to damage.
2. Hydraulic cylinder, the heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. With 4 units vice beam and cross balance beam, the lattice structure of the side door makes the side door more solid.
4. With 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.
| 45 Cubic Meter Tipper Semi Trailer Truck Price Specifications | |
| Outside Dimension | 11700x 2500x 3800mm |
| Payload | Max.80T capacity |
| Lifting System | HYVA brand oil cylinder 214 model |
| Main Beam | Q345B carbon steel, ‘H” type |
| Frame Beam(Heavy duty) | Upper and lower plate is 16mm and 18mm, Double middle is 10+10 mm. Height is 500 mm |
| Box thickness | Bottom plate:8mm Side plate:6mm |
| Axle | 5 axles 16tons BPW or SF |
| Landing Gear | JOST brand 28tons with two speeds |
| King Pin | 2.0 or 3.5 inch |
| Suspension | Mechanical suspension reinforced type |
| Leaf Spring(Strength) | 90mm(W)* 16mm(T) *10 Layer |
| Tires | 12R22.5, 315/ 80R22.5. 385/ 65R22.5 |
| Color/Logo | By customer demand |
