Description

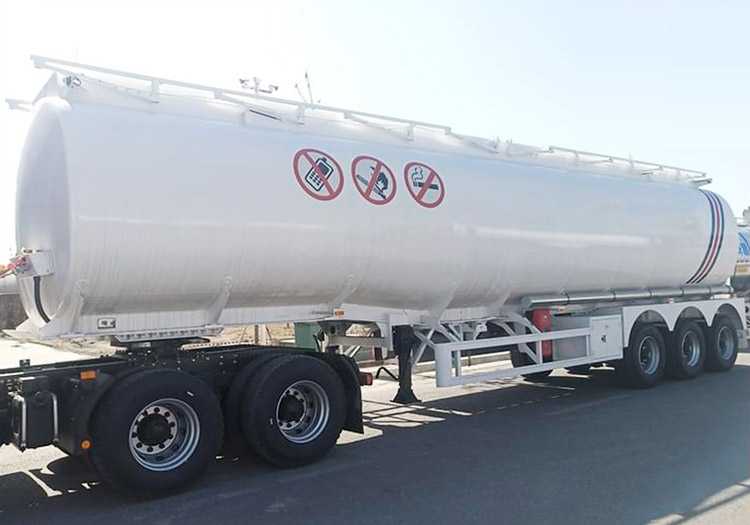

50000 liters 5 compartments fuel tank trailer for Africa
50000 liters 5 compartments fuel tank trailer use aluminum material,Aluminum alloy is a widely used material in automobile, aircraft industrial with many obvious features and advantages. It is widely accepted by oil companies and transporters worldwide, especially for those areas which have strict control on loading weight and road regulations.
50000 liters 5 compartments tank trailer.There are many advantages of aluminium fuel tanker, like less tare weight,for example, a 50000L carbon steel fuel tank trailer, the weight reaches 11000~12000KGS, while an aluminum fuel tank trailer only weight 6500~7500KGS depending on different structure and specification.more safety, lower operation cost, longer life span, beautiful out appearance, environmental friendly and high recycle value.
50000 liters 5 compartments fuel tank trailer for Africa | semi tanker trailer
50000 liters 5 compartments tank trailer,Aluminium fuel tanker loads highly flammable liquids like oil, fuel, diesel, so safety is the top priority item for consideration. The aluminium alloy is inflammable material and it accumulates less electrostatic. The aluminium fuel tank could conduct the electrostatic more efficiently, so decrease the possibility of fire accident.
50000 liters 5 compartments fuel tank trailer for Africa | semi tanker trailer
| Tank Body | |
| Volume(m3) | 50 cubic meters |
| Dimension | 115000mm* 2490mm* 3990mm or customized |
| Shape | Round |
| Tanker Body thickness | 6mm Aluminum |
| End Plate thickness | 7mm/Aluminum |
| Wave plate | 5mm/Aluminum |
| Tare weight | About 6500kg |
| Compartment | 5 |
| Manhole | 5pcs Aluminum alloy manhole cover, 500mm |
| Bottom Valve | 5 |
| Discharging Valve | 5pcs 3 or 4 inch |
| Discharging Pipe | 3 or 4 rubber hose, 2 pcs, 6m/each |
| Other | Ladder/ Walking Platform/ Folding armrest |
| Chassis | |
| Main Beams | Carbon steel |
| Axle | 3 axles, 13 Tons BPW brand |
| Landing Gear | Standard 25 Tons SAF brand |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Air suspension |
| Pneumatic Braking System | Stored chamber T30/ 30 spring brake chamber; 4 pcs, T30 2pcs |
| Tire | 385/ 65R22.5 |
| Accessories | One standard tool box/ one valve box/ two Fire Extinguisher/ two Spare tire rack |
| Mudguard material | Aluminum |
| Electrical system | 24Volt electrical system, 7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. Rear lights, rear, front and side reflectors. |
| Packing and shipping | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
| Shipping Terms | By Bulk Cargo |
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
