Description

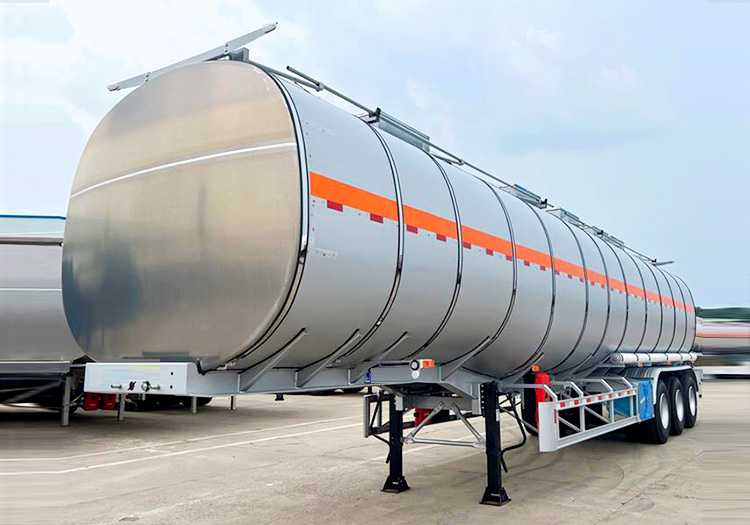

55000 Ltrs Stainless Steel Tanker Trailers Price
55000 Ltrs stainless steel tanker trailer are mainly used to transport food such as edible oil, and cooking oil and can be divided into those with an insulation layer and those without an insulation layer.
The 55000 ltrs stainless steel tanker trailer has a capacity of 30000-60000 liters, which is generally used for long-distance transportation.
We can customize the tankers for you according to your request. To fabric the most durable tankers, especially for Africa Market, considering the road condition.
55000 Ltrs Stainless Steel Tanker Trailers | semi tanker trailer
55000 Ltrs Stainless Steel Tanker Trailers | semi tanker trailer
Specification of 55000 Ltrs Stainless Steel Tanker Trailers
Dimension: 9730mmx2500mm x3400mm (the exact size depends on the final design.)
Total volume: 55000 liters
Tank body material: Stainless Steel
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, SF brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5 Chinese brand
Tire: 12.00R22.5 brand can be optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
