Description
New SF Vehicle China 3 Axle Side Wall Semi Trailer 60 Ton Price
The side wall trailer is a truck specially used to pull some bulk cargo, and there are special devices around it to prevent the leakage of bulk cargo.
SF Semi Trailer can provide you with a variety of models and sizes of side wall semi trailer to meet your needs for loading different weights of goods.
Advantages:
The space frame structure of side wall semi trailer is welded by longitudinal beams and integral penetrating beams. It can balance the strength, stiffness and toughness of the frame, with strong bearing capacity and no deformation.
The suspension system of SF Semi Trailer side wall trailer adopts internationally renowned brands, with high strength and strong impact resistance; the load of each axle is balanced, and the angle design of the system tie rod is reasonable, which reduces the friction and slip distance between the tire and the ground during frequent bumpy operations, and effectively reduces tire wear.

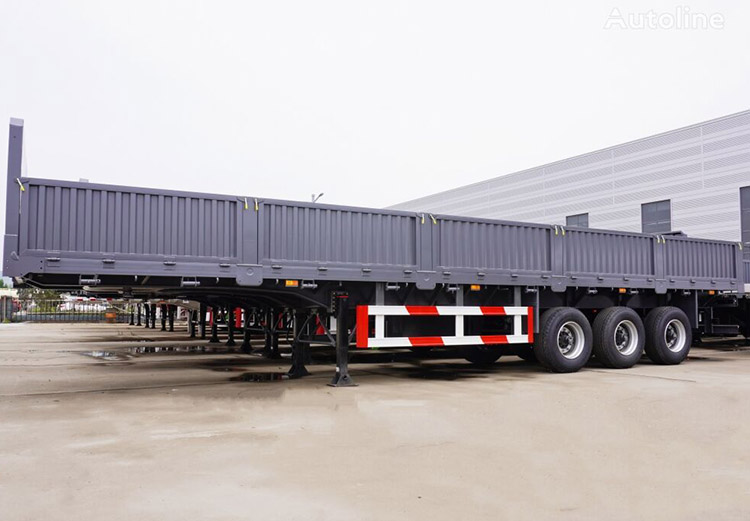

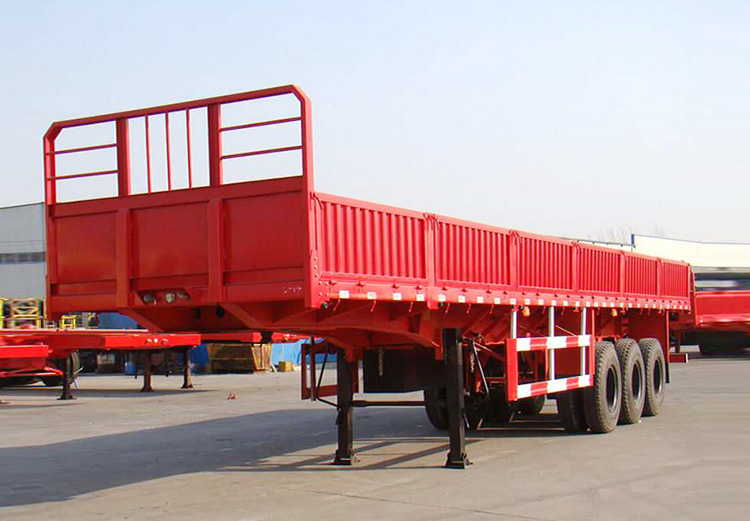

60 Ton 3 Axle Side Wall Semi Trailer
60 Ton 3 Axle Side Wall Semi Trailer
Dimension(mm): 13000x2500x3050mm
Trailer Sides: 1200mm
Loading capacity(ton):60T
Axles: 3 axles, 13T/16T, FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical suspension
King Pin: JOST brand 2.0 or 3.5 inch
Landing Gear: JOST brand D200T or Chinese brand 28tons
Bottom Platform: 3mm-thick checkered plate
60 Ton 3 Axle Side Wall Semi Trailer
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
