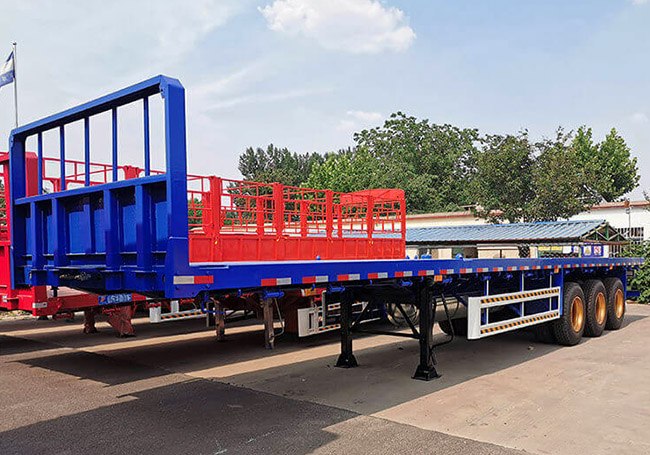

Flatbed Container Semi Trailer

Dimension:12500x2500x1500
Capcaity:30tons or customized
Axle:FUWA/BPW/JIII/FD
Suspension:Mechanical / Air bag
Landing Gear:28 Ton with two speed

Description

Flatbed Container Semi Trailer Forty Feet Container Trailer Multi Support parts 8, 12 sets container locks for carrying 1 unit 30ft, 40ft, 45ft container, and 2 units 20ft container.Rope Euphroes and hooks help fasten cargo, suitable for multi-cargo transporting.

Flatbed Container Semi Trailer Good Painting.Surfaces cleaned by shot blasting. One epoxy coating and acrylic finish coating.
Durable against rust, support longer good looking and service life.

Flatbed Container Trailer Automatic welding.

Submerged arc Automatic welding construction, Keypoint reinforces and purposeful welding avoids some parts easier to lose welding according to experience support vehicle longer time working without repairing.
Forty Feet Container Trailer Quality Axles suspensions and Brake sys.
BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safe and save tire cost Fix quality springs and suspensions, support longer service life, save maintenance cost.

Flatbed Container Semi Trailer is generally used to transport containers, bulk cargo, bulk cement, bulk rice, etc. It is mainly used for long-distance transportation. Generally, a flatbed trailer can transport 30-60 tons.

If it is a large amount of transportation or different needs, we can customize it, or flatbed trailer some deformed vehicles.

Flatbed Container Semi Trailer

Flatbed Container Semi Trailer | Semi Trailer | Semi Trailer Truck

Specifications
Dimension 12.5m* 2.5m* 1.6m
Payload 20-50tons capacity
Tare weight About 7T
Twist Lock 12 units for 20ft 40ft container
Main beam Q345B carbon steel material, “H” beam
Frame Beam Top Flange 14mm, Middle Flange 10mm, Bottom Flange 16mm
Frame Floor The thickness is 3mm pattern
Edge beam 16# Channel
Through beam 10# Channel
Along beam 6# Channelx6
Axle 3 axles BPW FUWA
Landing Gear JOST brand 28T lifting capacity
King Pin 2.00 or 3.5 inch
Suspension Mechanical or air bag suspension
Leaf Spring 90mm(W)* 16mm(T)* 10 Layer
Tires 12R22.5, 13R22.5, 315/ 80R22.5, 385/ 65R22.5
